ap |
0.5 mm (0.2 - 2) |
| fn |
0.03 mm/r (0.01 - 0.06) |
| hex |
0.03 mm/r (0.01 - 0.06) |
| vc |
260 m/min (260 - 240) |
|
| 材料分类层级1(TMC1ISO) |
P M S |
| 断屑槽制名称 (CBMD) |
MS |
| 工序类型 (CTPT) |
finishing |
| 固定孔直径(D1) |
2.8 mm |

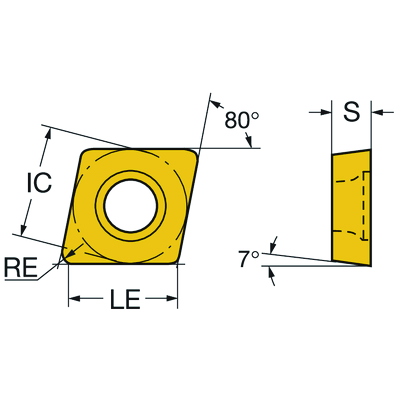

| 刀片尺寸和形状 (CUTINT_SIZESHAPE) |
CC0602 |
| 切削刃数(CEDC) |
2 |
| 内切圆直径(IC) |
6.35 mm |
| 刀片形状代码(SC) |
Rhombic 80 |
| 切削刃有效长度(LE) |
6.048 mm |
| 圆角半径 (RE) |
0.3969 mm |
| 材质 (GRADE) |
TP6212 |
| 基底(SUBSTRATE) |
HC |
| 涂层(COATING) |
PVD AlTiN |
| 刀片厚度(S) |
2.3813 mm |
| 主后角(AN) |
7° |
|
