Introduction

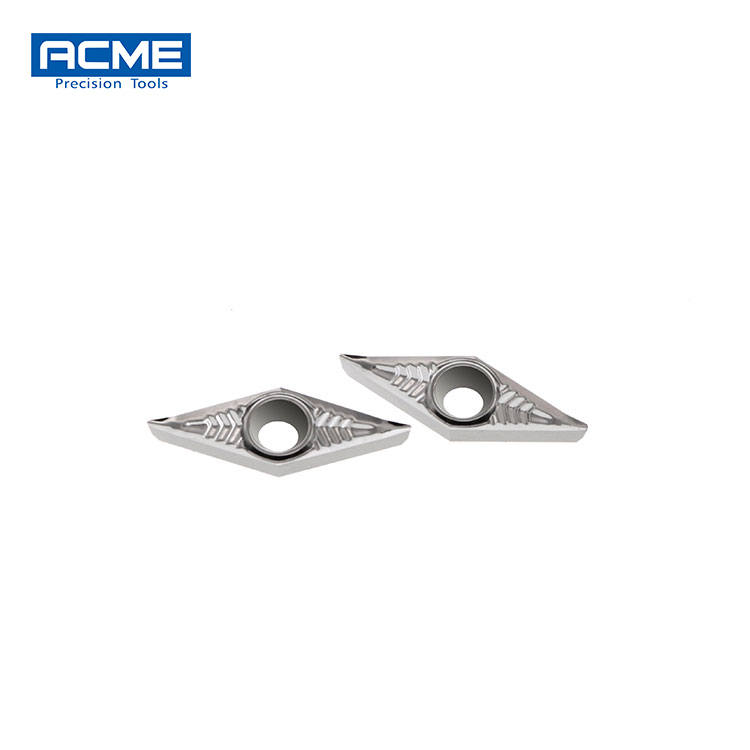

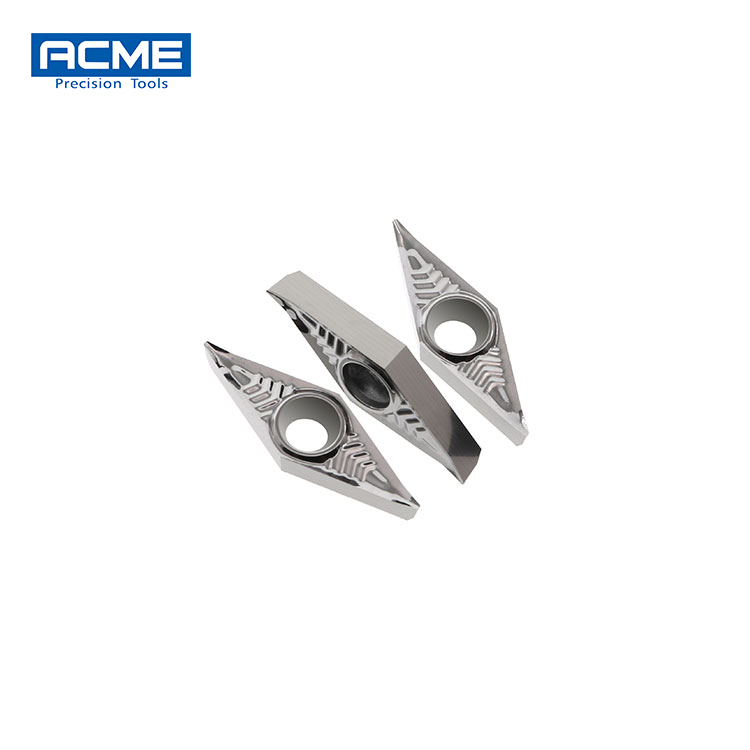

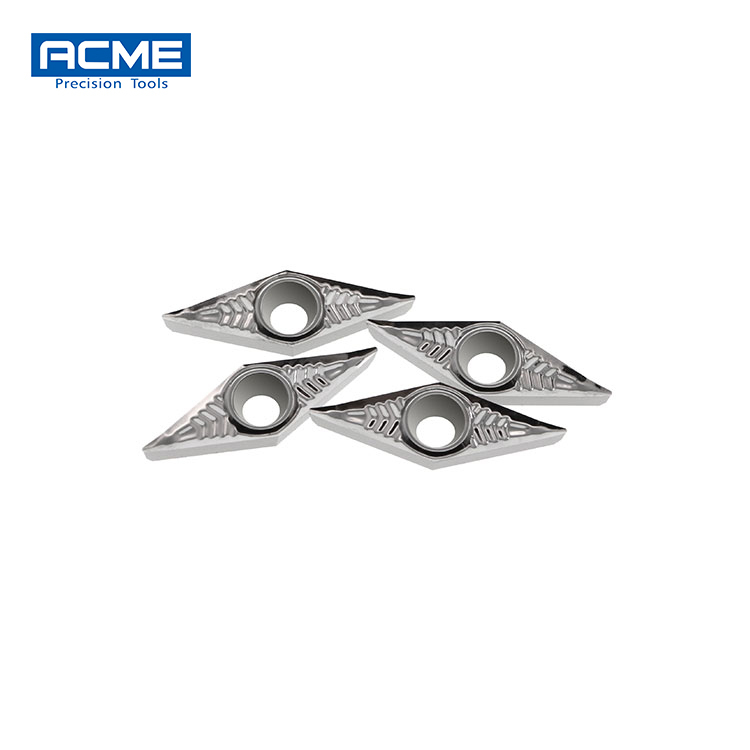

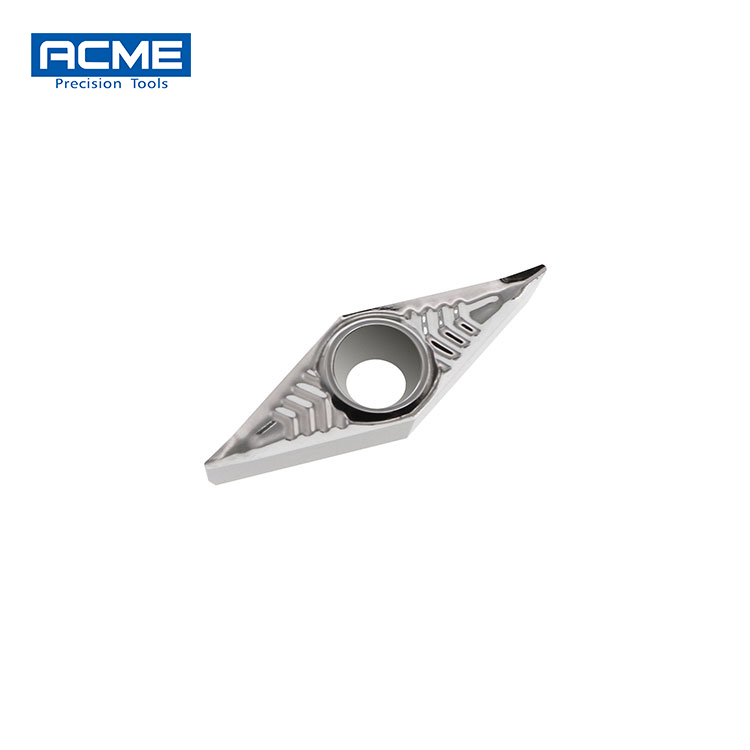

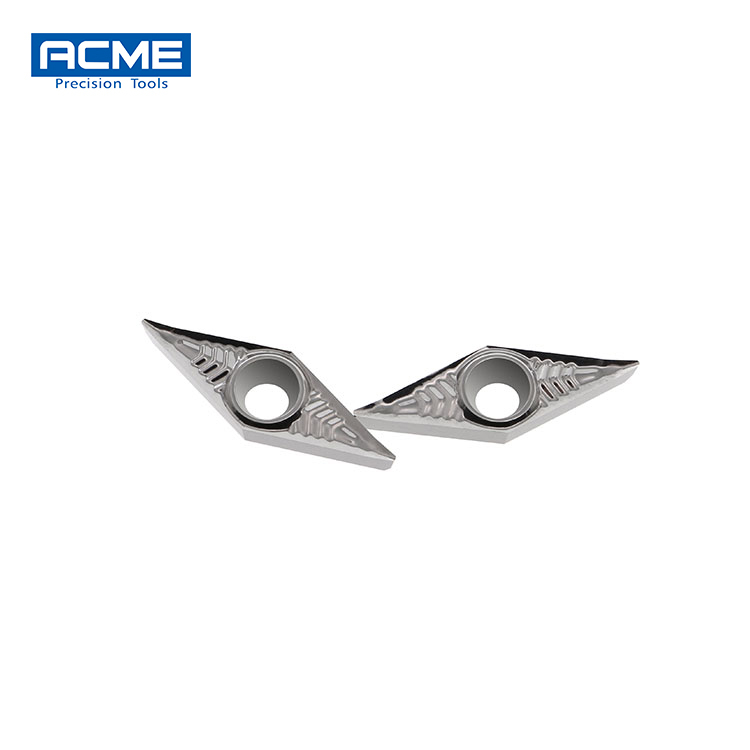

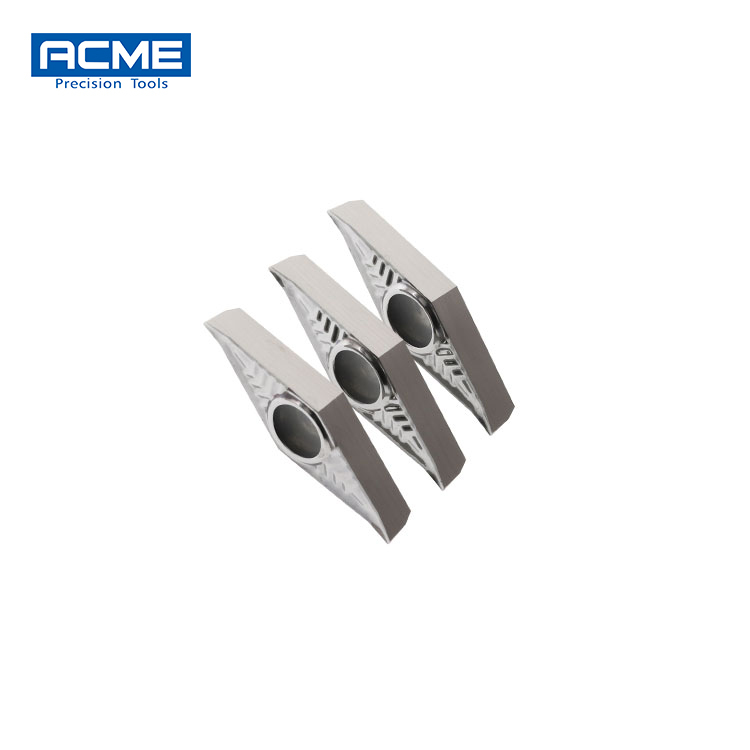

The VCGT160404 Aluminum Turning Insert pinnacle of cutting tool engineering, specifically designed to address the unique challenges of aluminum alloy machining. Manufactured in Hunan, China, this carbide insert combines ultra-sharp geometry with specialized surface treatments to deliver exceptional finishing capabilities while eliminating common aluminum machining issues. Engineered for professional turning applications, it sets new standards for efficiency and surface quality in modern manufacturing environments.
Key Technological Features
1arp Cutting Edge Geometry
The VCGT160404 features a precision-ground cutting edge with acute angles optimized for non-ferrous materials. This geometry achieves:
- **Minimal Cutting Resistanceuces radial forces by 40% compared to standard inserts
- Microscopic Chip Control: Prevents material tearing during fine finishing operations
- Vibration Damping Design: Special edge preparation enhances stability during high-speed operations
2. Advanced Anti-Sticking Surface Treatment
While maintaining an uncoated carbide substrate (Coating: NO), the surface engineering:
- Nano-Polished Flank Surfaces: Achieves Ra≤0.05μm surface roughness to prevent material adhesion
- Crystalline Structure Optimization: Modified grain boundaries resist aluminum buildup
- Passivation Technology: Electrochemical treatment creates anti-galling properties without compromising edge sharpness
3. Optimized Chip Evacuation System
The design incorporates computational fluid dynamics principles:
- Progressive Rake Angles: Gradual curvature guides chips away from workpiece
- Vortex Control Channels: Breaks chip segmentation for consistent curl formation
- Thermal Dissipation Geometry: Prevents heat concentration in finishing operations
- Surface Finish Enhancement: Achieves Ra 0.4-0.8μm surface quality in final passes
- Tool Life Extension: 30% longer operational life compared to conventional aluminum inserts
- Machining Efficiency: Allows 25% higher feed rates without compromising finish
- Stability in Deep Finishing: Maintains dimensional accuracy in L/D ratios up to 10:1
Technical Specifications
| Parameter | Specification |
|--------------------|-------------------------------|
| Application | Turning Operations |
| Material Hardness | Suitable for ≤HRC45 materials |
| Substrate Material | Premium Micro-Grain Carbide |
| Customization | OEM & ODM Supported | | Hunan, China |
Application Scenarios
Ideal for high-precision aluminum components in:
- Aerospace structural parts (e.g., wing ribs, fuselage sections)
- Automotive transmission
- Optical equipment mounting fixtures
- Semiconductor manufacturing chambers
- High-volume CNC production cells requiring unmanned operation
Customization Capabilities
Our engineering team provides comprehensive ODM/OEM solutions:
- Geometry Modifications: Custom clearance angles for specialized profiles
- Substrate Optimization: Tailored carbide grain sizes for specific alloy grades
- Batchpecific Treatments: Surface engineering aligned with customer QA protocols
- Packaging Systems: Custom insert organization for automated tool changers
The VCGT160404 Aluminum Turning Insert delivers transformative performance in aluminum machining through its sophisticated balance of ultra-sharp geometry, specialized surface engineering, and optimized chip control. Manufactured to exacting standards in our Hunan facility, this insert enables manufacturers to achieve unprecedented surface quality while reducing secondary operations. For technical specifications sheets, application case studies, or customized solutions, contact our engineering team to discuss how VCGT160404 can optimize your aluminum processes.
