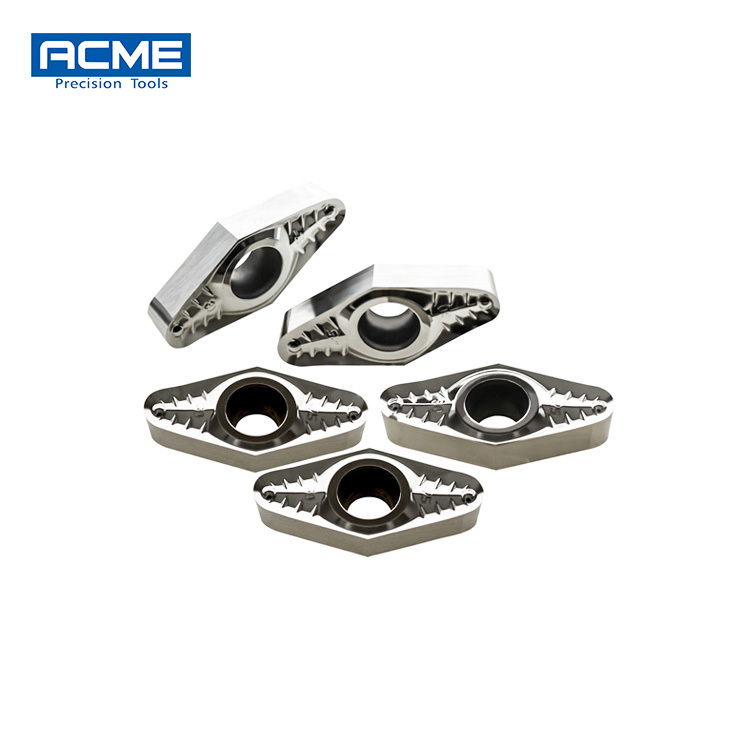

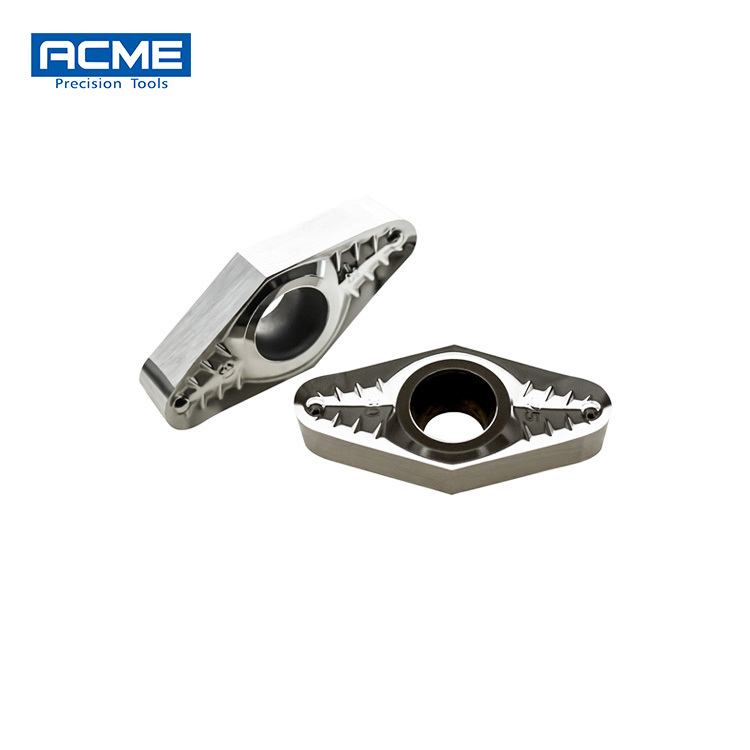

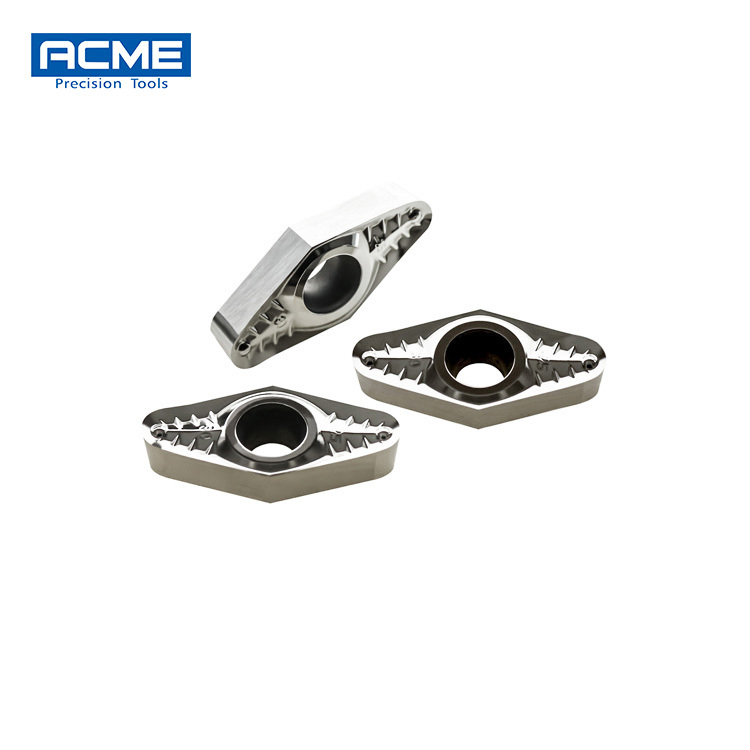

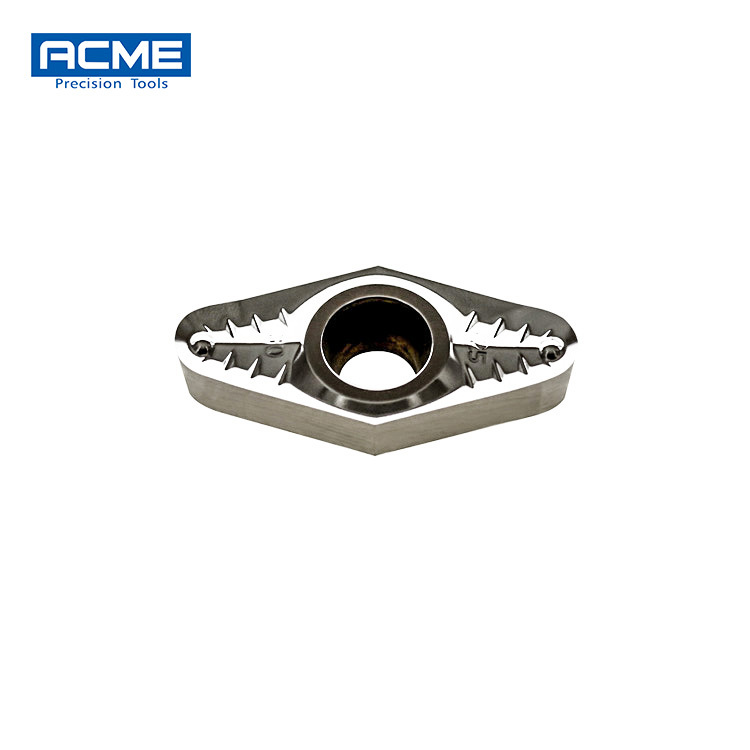

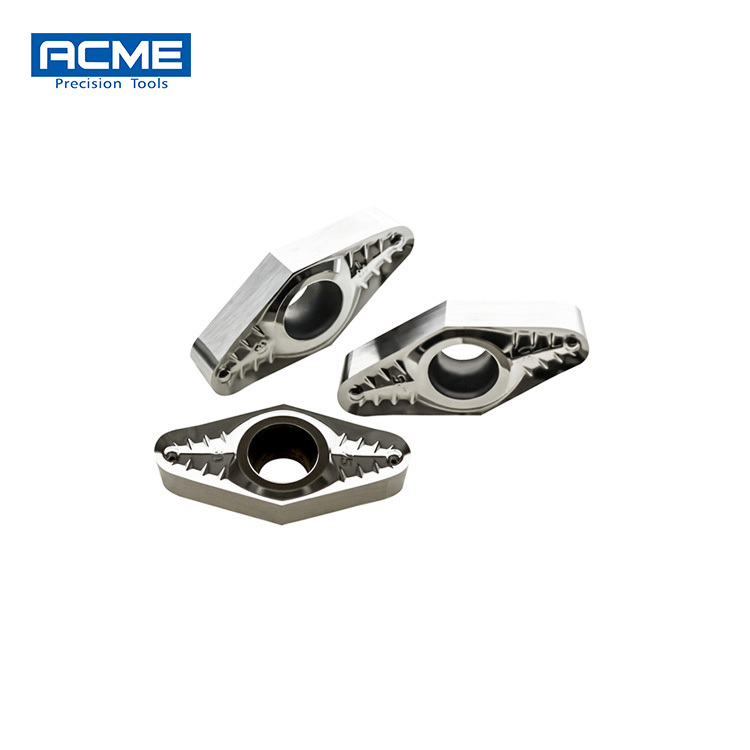

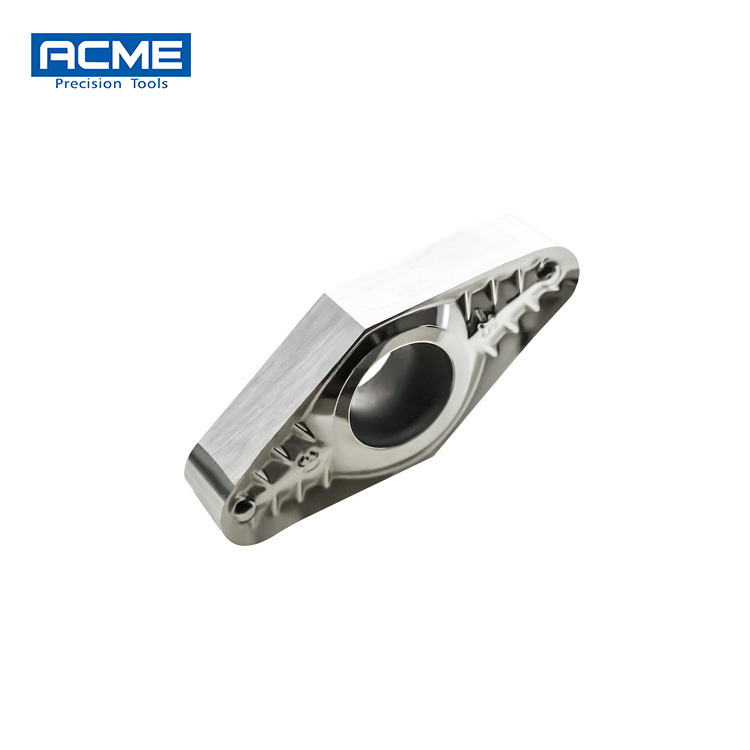

VCGT220530-AK  Turning Inserts: Precision Engineered for Superior Machining Performance

Introduction

In the demanding world of precision aluminum machining, achieving optimal surface finishes, maximizing tool life, and ensuring high material removal rates are critical success factors. The VCGT220530-AK Aluminum Turning Inserts represent a cutting-edge solution specifically engineered to excel in these challenging applications. This advanced insert combines specialized geometry, substrate technology, and coating deliver unparalleled performance when machining aluminum alloys and other non-ferrous materials.

Technical Specifications & Design Philosophy

• ISO Designation: VCGT220530 - Denoting a 35° diamond-shaped insert (V), with a positive rake geometry (C), tolerance class G, and 11° clearance angle. Dimensions: 22mm cutting edge length (IC), 5.50mm thickness (S), 3.97mm hole
• Specialized Grade: AK - This suffix indicates a grade optimized specifically for Aluminum (A) machining, featuring a sharp cutting edge (K) crucial for preventing material adhesion and achieving superior finishes.
• Substrate: Utilizes a fine-grained carbide substrate engineered for toughness and resistance to thermal shock, essential for the high speeds and potential for interrupted cuts common in aluminum turning.
• Geometry: Features a highly positive rake angle and polished rake face. This design significantly reduces cutting forces, promotes efficient chip flow, minimizes built-up edge (BUE), and enables higher rates and cutting speeds.
• Coating: Often employs a smooth, thin, highly polished PVD (Physical Vapor Deposition) coating (like TiB2, TiN, or specialized AlCr-based coatings) or an uncoated polished surface. This minimizes friction and heat generation, prevents chip welding, and enhances surface finish quality.

Key Performance Advantages

1. Exceptional Surface Finish: The sharp polished edge and optimized geometry produce mirror-like finishes on aluminum components, significantly reducing or even eliminating the need for secondary finishing operations. This translates directly to cost savings and shorter cycle times.
2. High-Speed Machining Capability: Engineered to withstand the extreme cutting speeds achievable with aluminum (often exceeding 1000 m/min). The substrate and geometry effectively manage heat, preventing premature wear or edge deformation.
3. Superior Chip Control: The polished rake face and positive geometry ensure smooth, consistent chip formation and evacuation. This prevents long, stringy chips that can cause machine downtime workpieces, or pose safety hazards.
4. Extended Tool Life & Reduced Downtime: Resistance to BUE and abrasive wear, combined with effective heat management, results in significantly longer and more predictable insert life. This minimizes tool change frequency, boosts productivity, and lowers cost-per-part.
5. Reduced Cutting Forces & Power Consumption: The positive geometry requires less energy to cut through the material, reducing strain on the machine and potentially lowering overall power consumption.
6. Versatility: While optimized for aluminum alloys (including high-silicon variants like A380, A390), these inserts also perform exceptionally well on other non-ferrous materials such as copper, brass, and magnesium, as well as some plastics and composites.

Target Applications

The VCGT220530-AK insert is ideally suited for a wide range of precision turning operations on CNC lathes and turning centers, including:

• Finishing & Semi-Finishing: Where superior surface quality is paramount.
• Contouring & Profiling: Maintaining precision on complex shapes.
• Facing &ID Turning: General machining operations requiring efficiency and quality.
• High-Speed Machining (HSM): Maximizing material removal rates while maintaining dimensional accuracy and finish.
• Machining of Thin-Walled Parts: The low cutting forces minimize part deflection.

Why Choose VCGT220530-AK Inserts?

Selecting the VCGT220530-AK inserts means investing in:

• Increased Productivity: Achieve higher and feeds, longer tool life, and less downtime.
• Enhanced Part Quality: Consistently achieve superior surface finishes and dimensional accuracy.
• Reduced Machining Costs: Lower cost-per-part through longer tool life, reduced scrap, and minimized secondary operations.
• Process Reliability: Predictable performance reduces setup time and troubleshooting.
• Optimized for Modern CNC Equipment: Designed to leverage the full capabilities of high-performance turning centers.

The VCGT220530-AK Aluminum Turning Insert is not just a cutting tool; it's a precision-engineered solution designed to overcome the specific challenges of aluminum machining. Byness, chip flow, heat management, and surface finish, it delivers tangible benefits in productivity, quality, and cost-effectiveness. For manufacturers seeking to optimize their aluminum turning processes, achieve exceptional part quality, and gain a competitive edge, the VCGT220530-AK represents a superior choice.

Ready to experience the performance difference? Contact our technical experts today to discuss how VCGT220530-AK inserts can revolutionize your aluminum turning operations and request a sample or quotation.
